CDIHR150-0 diesel tank inspection hatch (tank access port)

$366.00

LIFETIME WARRANTY.

Premium 190 mm/7 ½ inch round diesel tank inspection hatch/tank access port (150 mm/6 inch access hole) made of premium 316 marine grade stainless steel. Leakage worry free as it won’t corrode like aluminium or crack like plastic. Recommended for tanks/baffled compartments up to 150 litres for manual cleaning or larger for machine cleaning.

Description

LIFETIME WARRANTY.

Premium 190 mm/7 ½ inch round diesel tank inspection hatch/tank access port (150 mm/6 inch access hole) made of premium 316 marine grade stainless steel. Leakage worry free as it won’t corrode like aluminium or crack like plastic.

Tank size: Tanks/baffled compartments up to 150 litres each (for manual cleaning or larger for machine cleaning.). If there is no access on top of the tank, in some circumstances the hatch can be installed on the side of the tank. Please confirm with call technical support first on 1300 838 111, Mon-Fri 9:00-16:00 AEST.

Technical specifications: hatch size – 190 mm/7 ½ inch, internal tank access hole size 150 mm/6 inch, hatch material – 3 mm/1/8 inch premium marine grade stainless steel, gasket material – 3 mm/1/8 inch fuel resistant NBR. Approximate height above tank surface 17.5 mm/11/16 inch.

Tank material compatibility: stainless steel, aluminium, steel, plastic, copper alloy, fibreglass/composite (for composite tanks an adaptor ring is needed – sold separately here)

Compliant with MANDATORY ISO Standard 21487: Diesel tanks shall be equipped with inspection hatch(es) having a suitable diameter of at least 120 mm at a suitable position(s) for cleaning and inspection of the lowest part(s) of the tank.

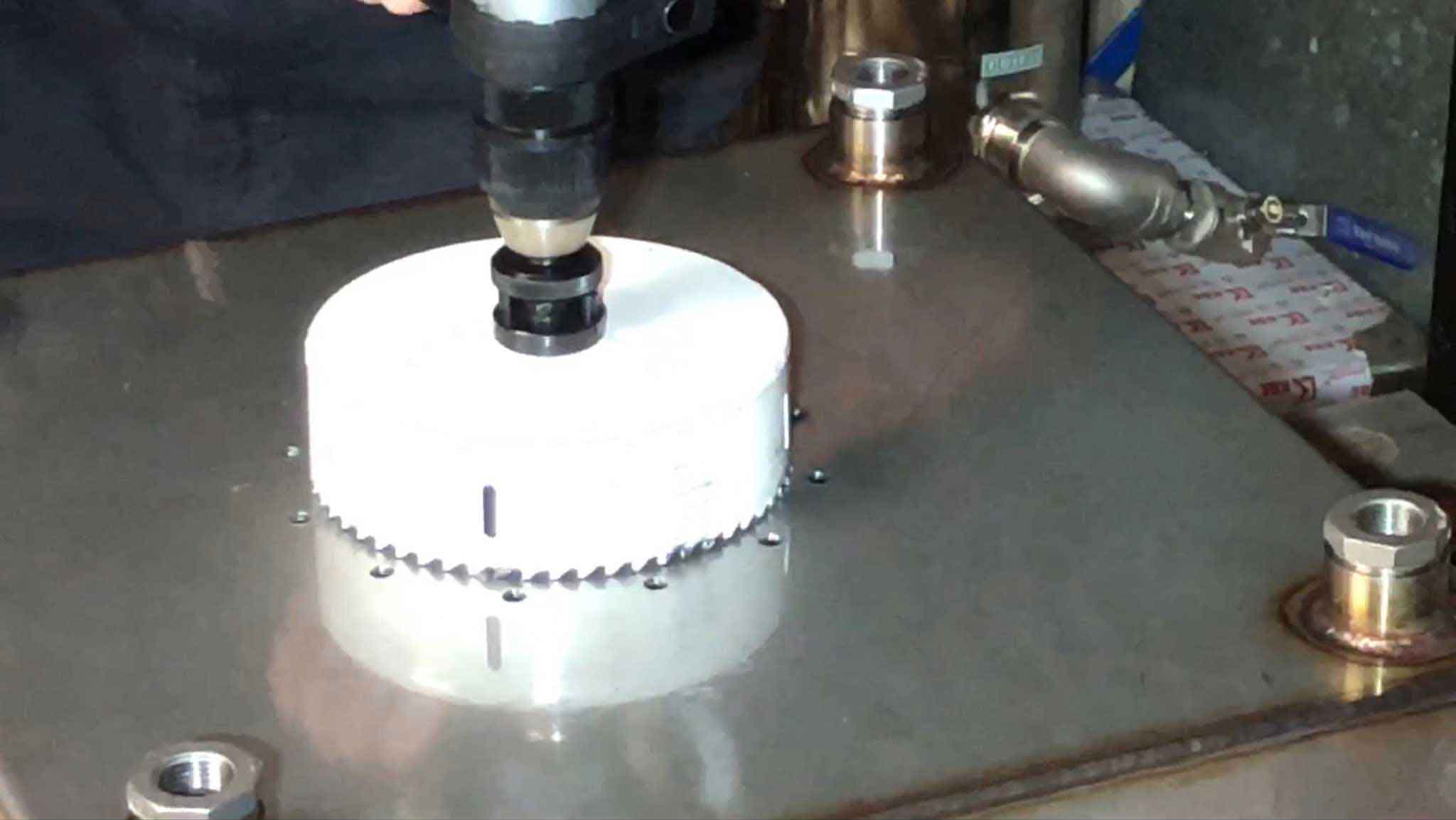

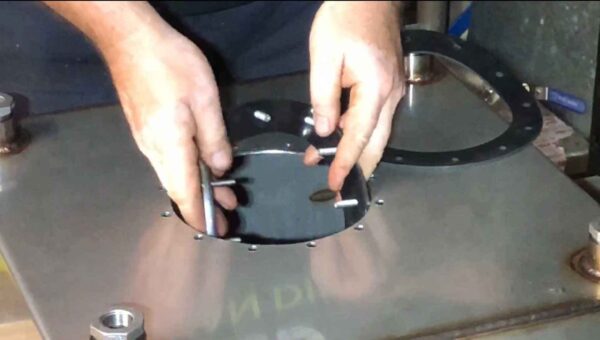

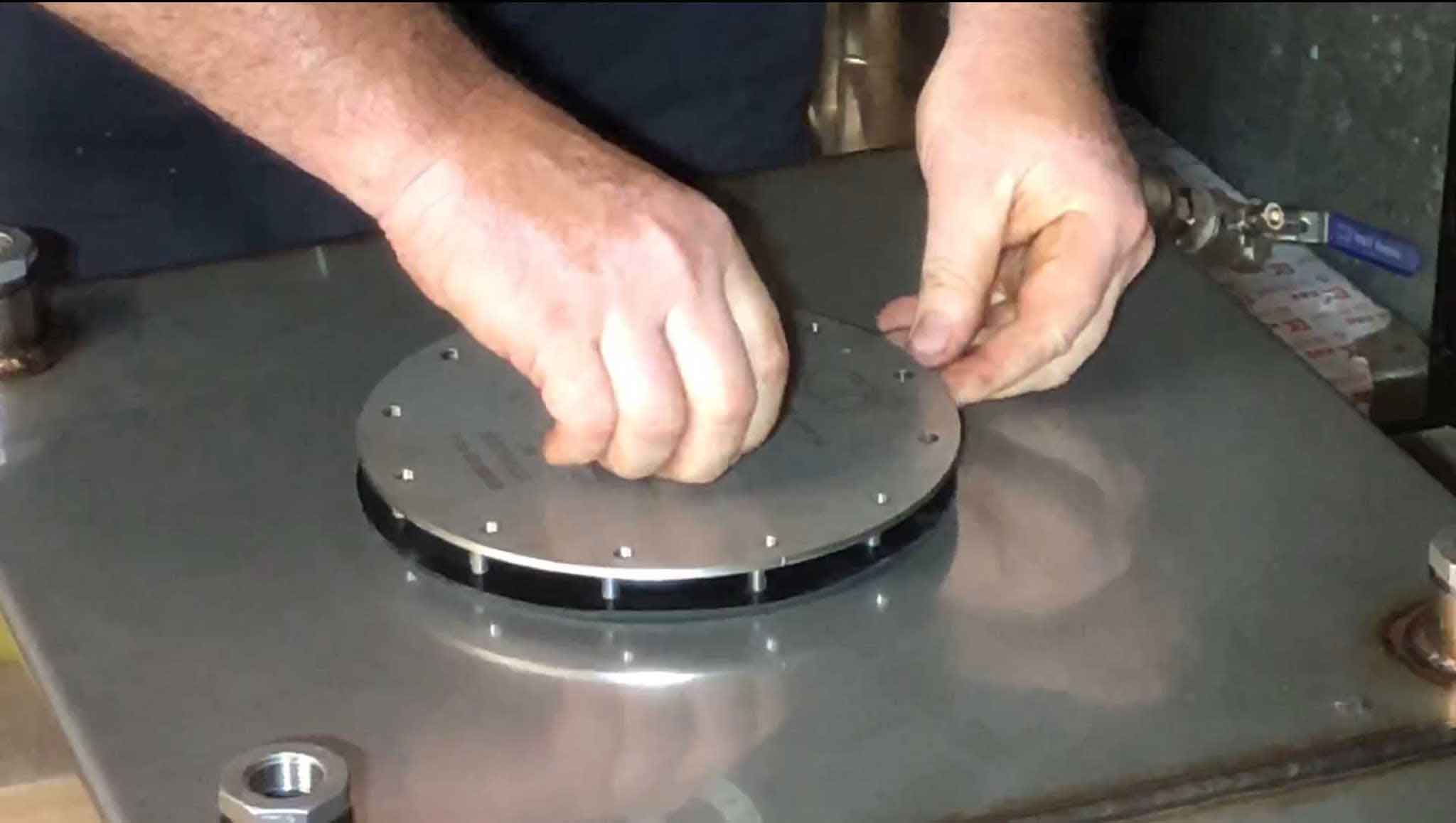

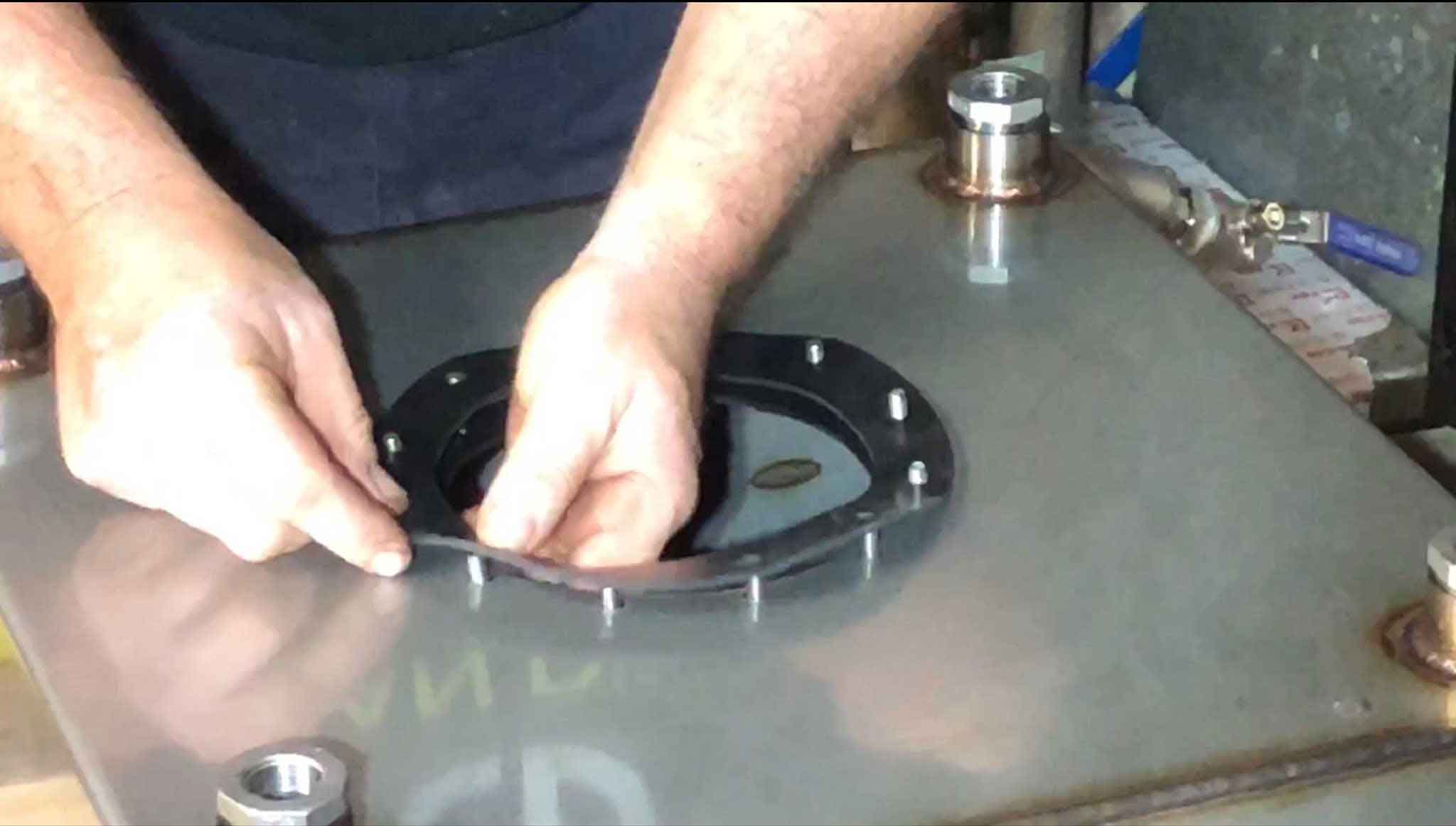

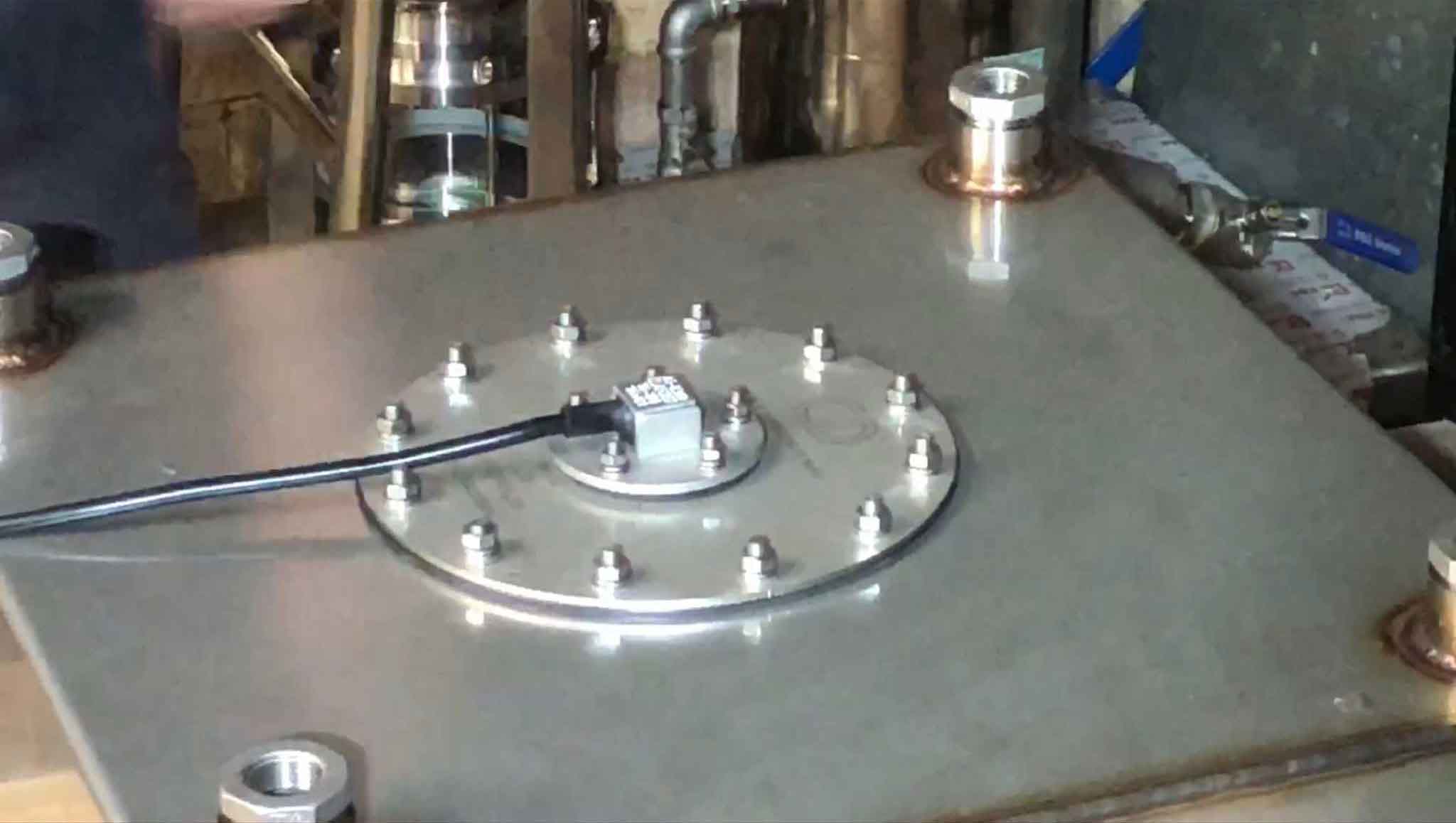

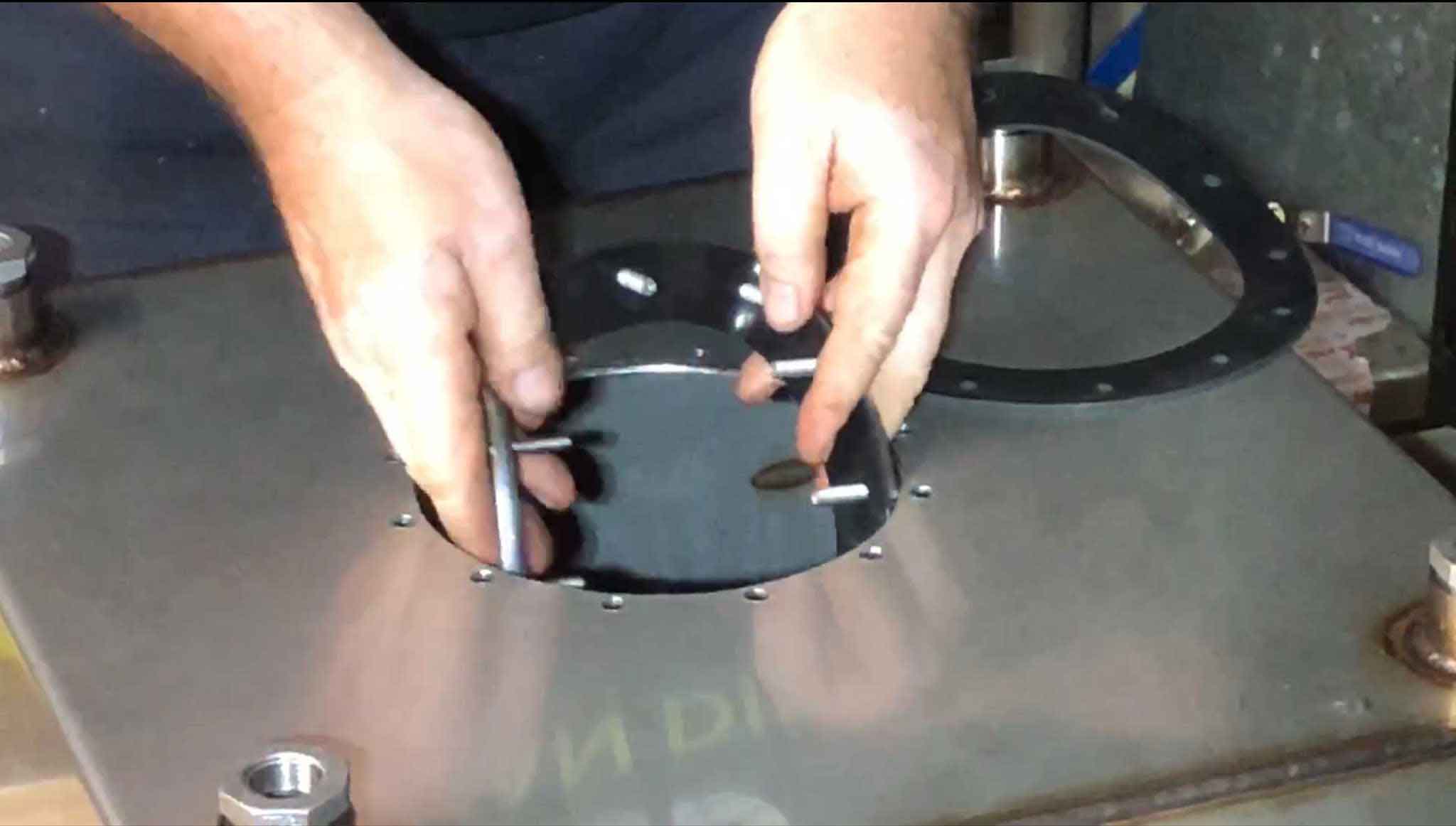

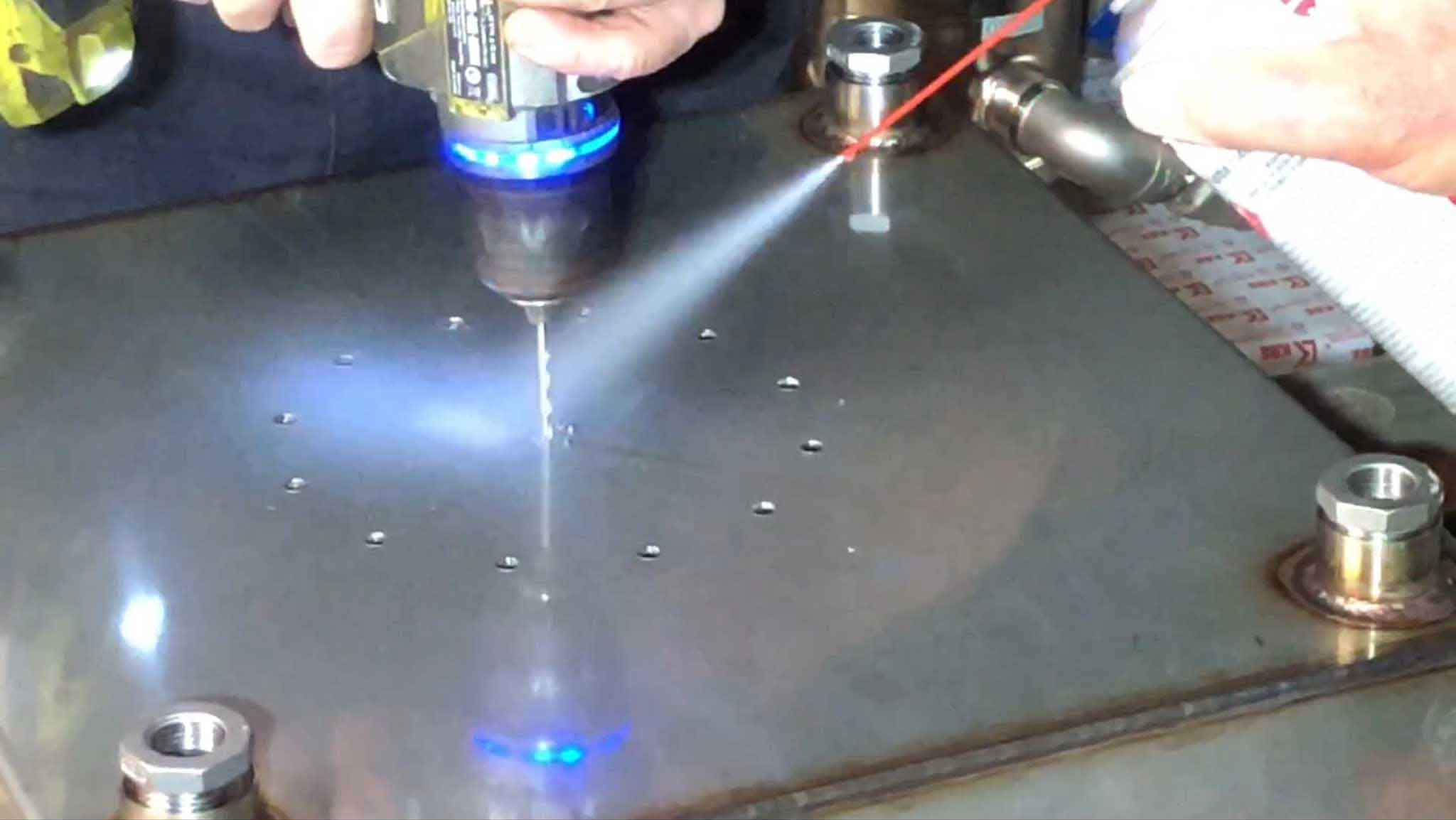

INSTALLATION INSTRUCTIONS:

Tank inspection hatches installation.PDF

For any additional information feel free to call technical support on 1300 838 111, Mon-Fri 9:00-16:00 AEST or use the CONTACT FORM.
