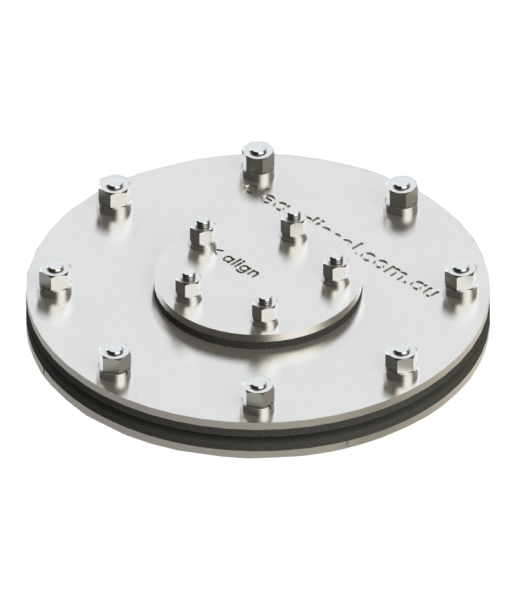

CDIHR120-1 diesel tank inspection hatch (tank access port) with 1 SAE port

$426.00

Designed and manufactured in Australia. LIFETIME WARRANTY. NO WELDING REQUIRED. INSTALLS IN MINUTES

Our innovative tank inspection hatches (tank access ports) have specifically designed for easy access of the internals of diesel fuel tanks to remove water, microbial contamination (diesel bug) sludge or for any general maintenance and inspection purposes. The hatches are designed and manufactured to outlast the life of the tank from marine grade 316 stainless steel and with proper installation they will ensure you can periodically check and clean you fuel or the inside of the tank as necessary.  We also provide diesel tank and fuel polishing services as well as professional installation of the hatches for Sydney and Melbourne metropolitan and adjacent areas. For more information call us on 02 9972 9938 or use the contact form.

Out of stock

Description

LIFETIME WARRANTY

NO WELDING REQUIRED

INSTALLS IN MINUTES

Designed and manufactured in Australia. Industrial grade round diesel tank inspection hatch/tank access port made of premium 316 marine grade stainless steel featuring innovative double gasket system with  galvanic insulation (makes it compatible with any tank material)and leakage worry free as it won’t corrode like aluminium or crack like plastic. Easy installation.

Tank size: Recommended for tanks/baffled compartments up to 120 litres each for manual cleaning (larger for machine cleaning). If there is no access on top of the tank, you can use CDIHS120-0 that has been specifically designed for side installation.

Technical specifications: hatch size – 160 mm (6 5/16″), internal tank access hole size 120 mm (4 3/4″), hatch material – 3 mm (1/8″) premium marine grade stainless steel, gasket material – 3 mm (1/8″) fuel resistant NBR. Approximate height above tank surface 17.5 mm (11/16″). Fitted with 1 provision SAE port (for fuel senders, fuel pick-up and return, overhead water drain, D.E.B.U.G. multi-stage fuel decontamination fitting

Tank material compatibility: stainless steel, aluminium, steel, plastic, copper alloy, fibreglass/composite (for composite tanks an adaptor ring is needed – sold separately)

Compliant with MANDATORY ISO Standard 21487: Diesel tanks shall be equipped with inspection hatch(es) having a suitable diameter of at least 120 mm at a suitable position(s) for cleaning and inspection of the lowest part(s) of the tank.

Not recommended for use in petrol tanks and tanks containing highly flammable fluids and gases.

INSTALLATION INSTRUCTIONS: Tank inspection hatches installation.PDF

For any additional information feel free to call technical support on (03) 8595 3262, Mon-Fri 9:00-16:00 AEST or use the CONTACT FORM.
