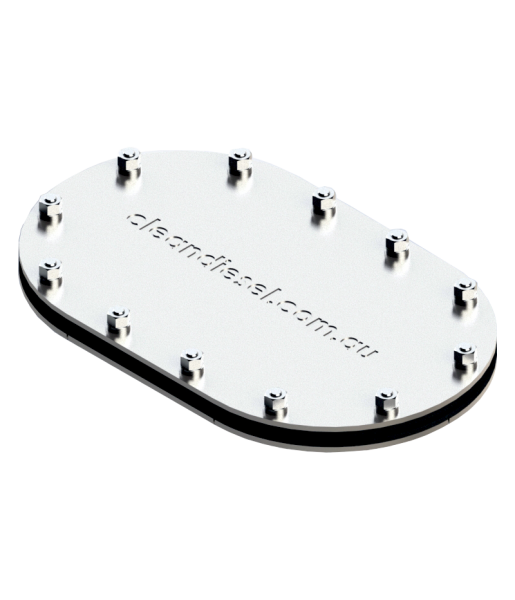

Premium 260×160 mm stadium diesel tank inspection hatch/tank access port (220×120 mm access hole) made of premium 316 marine grade stainless steel; won’t corrode like aluminium or crack like plastic. Recommended for tanks/baffled compartments up to 120 litres.
Tank size: Due to large size, can be installed over a baffle to cover 2 baffled compartments up to 120 litres each. If there is no access on top of the tank, in some circumstances the hatch can be installed on the side of the tank. Please confirm with call technical support first on 1300 838 111, Mon-Fri 9:00-16:00 AEST.
Technical specifications: hatch size – 260×160 mm, internal tank access hole size 220×120 mm, hatch material – 3 mm premium marine grade stainless steel, gasket material – 3 mm fuel resistant NBR. Approximate height above tank surface 17.5 mm
Tank material compatibility: stainless steel, aluminium, steel, plastic, copper alloy, fibreglass/composite (for composite tanks an adaptor ring is needed – sold separately)
Compliant with MANDATORY ISO Standard 21487: Diesel tanks shall be equipped with inspection hatch(es) having a suitable diameter of at least 120 mm at a suitable position(s) for cleaning and inspection of the lowest part(s) of the tank.
